A dissectible coils and core set is an essential educational tool designed to support a wide range of electromagnetic experiments in physics and engineering laboratories. This versatile kit provides students with the components needed to explore the fundamental principles of magnetism, electromagnetic induction, magnetic flux, and transformer action through hands-on investigation. Built for clarity, durability, and repeated use, the set allows learners to assemble and disassemble coils, cores, and magnetic elements to observe how different configurations influence electromagnetic behavior. It serves as a practical learning aid for schools, colleges, technical institutes, and vocational training centers where a strong understanding of electromagnetic concepts is required.
Description
The Dissectible Coils and Core Set is an educational physics apparatus designed to demonstrate fundamental principles of electromagnetism and magnetic circuits. This laboratory kit allows students to study how electric current generates magnetic fields and how magnetic flux behaves when different coils and cores are combined. Because electromagnetism is a key topic in physics education, this set provides a practical and interactive method for understanding concepts such as inductance, magnetic flux, transformer action, and magnetic circuit design.
Components of the Dissectible Coils and Core Set

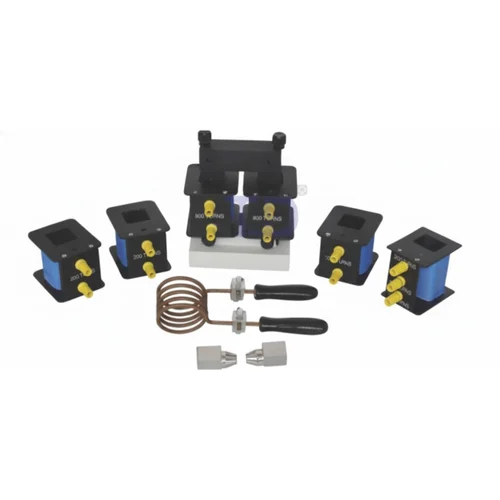

The Dissectible Coils and Core Set includes several carefully designed components that enable students to assemble and analyze different electromagnetic configurations. A strong clamp base is provided to hold the apparatus firmly during experiments. This stable support allows coils and cores to remain properly aligned while learners observe magnetic interactions and electrical behavior.
A laminated U-shaped core forms one of the main elements of the set. Its laminated design helps reduce eddy current losses and improves magnetic efficiency. This feature allows students to understand how laminated cores are used in real electrical machines and transformers to improve performance and reduce energy loss.
Role of Laminated Armature and Magnetic Circuit
The Dissectible Coils and Core Set also includes a laminated armature that completes the magnetic circuit when placed across the U-shaped core. By connecting the armature, students can observe how magnetic flux travels through a closed-loop path.
This setup helps learners visualize how magnetic fields are directed and concentrated within magnetic circuits. As a result, students gain a clearer understanding of the principles used in electric motors, generators, and transformer systems.
Use of Soft Iron Poles in Magnetic Field Experiments
Soft iron poles included in the Dissectible Coils and Core Set allow students to modify and control the magnetic field path. Because soft iron has high magnetic permeability, it easily conducts magnetic flux and strengthens the magnetic field.
By repositioning the poles or altering their arrangement, learners can observe changes in magnetic field strength and distribution. Consequently, these experiments demonstrate how magnetic materials influence electromagnetic behavior in practical applications.
Multiple Coils for Comparative Experiments
A major advantage of the Dissectible Coils and Core Set is the inclusion of multiple coils with different turn counts and current ratings. The kit typically contains a 300-turn coil rated for 4A, a 600-turn coil rated for 2A, a 1200-turn coil rated for 1A, and a 3600-turn coil rated for 0.3A.
These varied coils allow students to compare inductance and magnetic field strength under different electrical conditions. By experimenting with coils of different turns, learners can study how the number of turns affects magnetic field intensity and electrical performance.
Demonstrating Transformer Principles
The Dissectible Coils and Core Set can also be used to demonstrate basic transformer operation. By combining two coils with the laminated core, students can observe how electrical energy transfers through magnetic induction.
This setup allows learners to explore step-up and step-down transformer behavior. They can analyze how the ratio of coil turns influences voltage and current transformation, which is a key concept in electrical power systems.
Educational Benefits in Physics Laboratories
The Dissectible Coils and Core Set is widely used in physics laboratories and engineering training environments. It enables students to perform hands-on experiments that illustrate how electrical energy is converted into magnetic energy.
Because the components can be easily assembled and disassembled, students gain a deeper understanding of the internal structure of electromagnetic devices. This interactive approach encourages critical thinking, experimentation, and practical problem-solving.
Importance in STEM Education
The Dissectible Coils and Core Set plays a valuable role in STEM education by transforming abstract electromagnetic theories into practical demonstrations. Instead of studying diagrams alone, students can observe real electromagnetic effects directly.
This hands-on experience strengthens conceptual understanding and prepares learners for advanced studies in electrical engineering, electronics, and applied physics.
