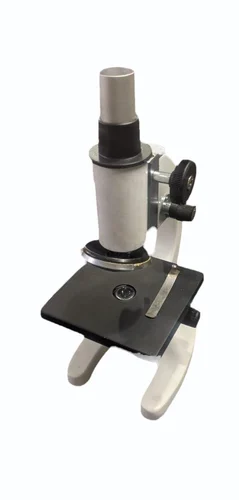

Student Laboratory Microscope – Precision Optics for Schools, Colleges & Labs Our Student Laboratory Microscope is a robust, user-friendly instrument built to meet the educational needs of schools, colleges, and training centers. Aligned with CBSE, ICSE, NCERT, and NEP 2020 curriculum requirements, it offers crystal-clear microscopic imaging, making it ideal for practical science education from school to undergraduate level.
Description
Manufactured in Ambala Cantt, India’s scientific instruments capital, the microscope is suitable for domestic use and global export. Designed for performance, durability, and ease of use, it comes in monocular or binocular configurations and offers LED or halogen illumination options for enhanced visibility.
Technical Specifications:Viewing Head: Monocular 45° inclined / 360° rotatable (Binocular optional)Eyepiece: WF 10X standard (16X optional)Objectives: Achromatic 4X, 10X, 40X (spring-loaded), 100X (oil immersion)
Magnification Range: 40X to 1000X
Nosepiece: Quadruple turret with click stops
Stage: Mechanical stage 125 x 115 mm with coaxial X-Y movement
Focusing: Coarse & fine coaxial knobs for smooth focusing
Condenser: Abbe condenser NA 1.25 with iris diaphragm and filter holder
Illumination: LED/6V-20W Halogen Lamp/Mirror option
Power: 220V AC / Rechargeable battery (optional)
Design & Construction:
Sturdy die-cast metal body with anti-rust, anti-fungal coating
Rubber feet for vibration-free operation
High-quality optical glass lenses with anti-reflective coating
Smooth and precise mechanical movement for accurate slide navigation
Built for long-term use in varied climatic conditions
Applications:
Educational Institutions:
Ideal for science labs in CBSE, ICSE, State board schools
Used in B.Sc., M.Sc., DMLT & vocational training programs
Approved for NCERT Jaadui Pitara and ESML kits
Skill Development:
Skill India and mobile lab initiatives
STEM education & NEP 2020 teaching aids
Government model schools and training labs
Basic Diagnostics & Research:
Entry-level microbiology & pathology labs
Suitable for plant cells, blood smears, protozoa, bacteria
Use in home science, school exhibitions & competitions
✨ Key Features:
Wide, bright field illumination for clarity
Precision optical system with long working distance
Supports digital camera/eyepiece for screen projection
Modular design for easy upgrades and maintenance
Excellent for observing onion epidermis, aquatic protozoa, smears, etc.Accessories & Options:
Digital eyepiece (optional)
Prepared slides, blank slides, coverslips
Dust cover, user manual
Wooden or plastic storage/carrying case
OEM customization and branding for bulk orders
Certifications:
CE Certified (European Compliance)
ISO 9001:2015 Quality Management
RoHS Compliant (Environmentally safe)
Calibration Certificate available on request
Export-safe thermocol or corrugated box packaging
