Description

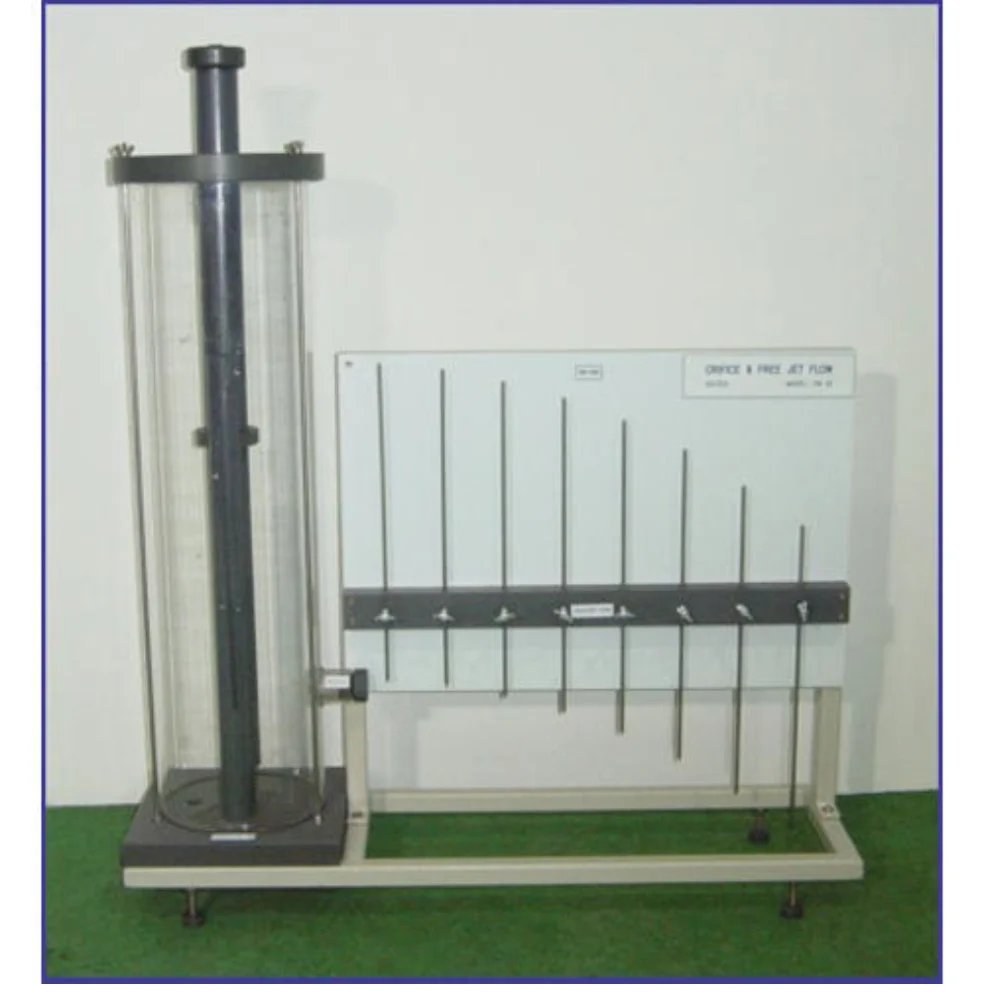

The orifice and jet velocity apparatus is a practical fluid mechanics teaching system designed to study water discharge and jet behavior under controlled conditions. It uses a transparent Plexiglas column with an adjustable overflow to regulate water level and flow rate accurately. Because visual observation improves learning, the clear column allows students to see flow patterns directly. Moreover, the closed water circulation system ensures stable operation without the need for an external water supply. As a result, the apparatus supports repeatable experiments in academic laboratories.

Orifice And Jet Velocity Apparatus for Fluid Mechanics Experiments

This orifice and jet velocity apparatus includes two interchangeable nozzles that allow comparative studies of different jet configurations. Students can analyze how nozzle geometry affects jet velocity and discharge characteristics. Therefore, they gain hands-on understanding of core fluid mechanics principles. In addition, adjustable probes and a white background panel make it easy to trace jet trajectories and measure flow paths accurately. Consequently, learners can connect theoretical equations with real experimental data.

Design Features and Measurement Accuracy

The apparatus features a transparent column with adjustable overflow, which enables precise control of head and flow conditions. Integrated probes help measure jet trajectory, while the white panel improves visibility during observation. Because the system uses a closed-loop water circuit, it maintains consistent performance during long laboratory sessions. The durable construction supports frequent academic use and minimizes maintenance needs. As a result, institutions can rely on this setup for regular teaching and assessment activities.

Educational Value and Curriculum Integration

The orifice and jet velocity apparatus helps students study discharge coefficients, jet velocity principles, and flow behavior through orifices. It strengthens skills in precise measurement, data recording, and experimental analysis. Therefore, it fits well into vocational, polytechnic, and engineering curricula focused on fluid dynamics and hydraulics. The system also supports advanced demonstrations and can complement computational fluid dynamics studies. For related laboratory instruments and educational equipment, you may explore:
https://www.aseducationalkits.com/products-category/physics-lab-equipment/

For a broader range of laboratory and engineering training solutions, professionals can also refer to:
https://interlabs.in/products-catalogue/

Applications

Fluid mechanics and hydraulics laboratory experiments
Engineering and polytechnic practical training
Jet flow and discharge coefficient studies
Vocational and TVET technical education programs
Research and demonstration of fluid discharge behavior
