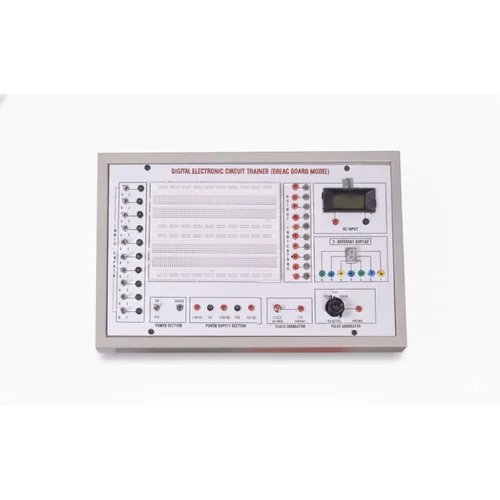

The digital electronic circuit trainer breadboard model is a versatile and comprehensive educational tool designed to support hands-on learning in digital electronics for schools, colleges, and technical training institutes. This trainer is specifically developed to help students understand fundamental and advanced concepts of digital logic through practical circuit construction and experimentation. By combining a solderless breadboard with integrated power supplies, signal sources, logic controls, and visual indicators, it creates an ideal learning environment where theoretical knowledge can be directly translated into working electronic circuits. Its compact and classroom-friendly design makes it suitable for laboratory benches, electronics workshops, and instructional demonstrations.
Description
At the core of this trainer is a high-quality breadboard layout featuring a total of 400 tie points, arranged with horizontally and vertically common strips for easy and systematic circuit building. This configuration allows learners to quickly assemble and modify digital circuits without soldering, encouraging experimentation and troubleshooting. The clearly defined common strips help students understand circuit connectivity, signal flow, and component placement, which are essential skills in digital electronics education. The breadboard supports repeated use and can accommodate a wide range of integrated circuits, discrete components, and interconnections required for digital logic experiments.
The trainer includes a stable low-voltage DC power supply suitable for logic-level circuits, ensuring safe operation during student use. With regulated output and sufficient current capacity, it can reliably power multiple digital ICs and display elements simultaneously. Logic input switches are provided on the front panel, allowing users to manually apply logic high and logic low states to their circuits. These switches make it easy to test logic gate operations, truth tables, and combinational logic designs without the need for external signal sources. The inclusion of multiple logic input options enhances flexibility and supports a wide variety of experiments.
For output visualization, the digital electronic circuit trainer breadboard model is equipped with multiple LED indicators and a seven-segment display. These visual outputs enable students to instantly observe the results of their circuit configurations, making abstract digital concepts more tangible. Whether verifying Boolean expressions, observing binary counting sequences, or studying data encoding and decoding, the clear visual feedback significantly improves comprehension and retention. The trainer also features an integrated clock generator with selectable frequencies, including low-frequency pulse options suitable for counters, flip-flops, and shift registers. A pulser switch allows for single-step clocking, which is especially useful when analyzing sequential logic behavior.
An integrated digital panel meter mounted on the front panel adds further educational value by allowing real-time monitoring of voltage levels during experiments. This helps students develop good measurement practices and understand the importance of electrical parameters in digital circuit performance. The trainer is designed to support a wide range of experiments, including logic gates, Boolean identities, adders and subtractors, flip-flops, counters, shift registers, multiplexers, demultiplexers, encoders, and decoders. Its all-in-one construction reduces setup time and minimizes the need for additional laboratory equipment..
