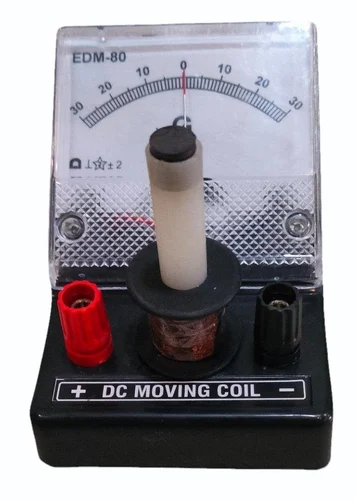

The DC Moving Coil Galvanometer with a current range of 5A is a high-precision analog instrument designed specifically for educational, experimental, and research-based laboratory applications. Built with a robust plastic body, this galvanometer is engineered for durability and consistent performance under standard lab conditions. It operates on a direct current (DC) power source and features a reliable analog display, which offers precise and instantaneous visual readings of electrical current. The device is ideal for demonstrating and measuring current in circuits, making it a crucial instrument for physics labs, electrical training workshops, and engineering institutions.
Description
The galvanometer functions based on the moving coil principle, where a coil suspended in a magnetic field experiences a torque proportional to the current flowing through it. This torque causes a deflection of the pointer on the scale, which is carefully calibrated to measure up to 5 amperes. Its high sensitivity and accuracy allow users to detect even minute changes in current, ensuring that it meets the rigorous demands of both academic and industrial applications. The instrument is typically used in experiments involving Kirchhoff’s laws, Ohm’s law verification, bridge circuits, and other fundamental and advanced studies in electromagnetism and electronics.
One of the standout features of this DC galvanometer is its clear and easy-to-read analog dial. The scale is marked for precise readings and is enclosed under a transparent cover to protect the internal mechanism from dust and accidental damage. The dial’s ergonomic layout allows students and researchers to observe current fluctuations effortlessly during dynamic electrical experiments. Additionally, the lightweight yet sturdy plastic casing ensures safe handling and portability while maintaining structural integrity even after repeated usage.
Its 5A capacity makes this galvanometer particularly suitable for experiments involving relatively higher current values, which are often beyond the scope of standard microampere or milliampere galvanometers. This extended current range allows the instrument to be used across a wider variety of experimental setups, adding flexibility and value to laboratory equipment collections. Whether it is being used in a basic school lab setting or a more complex university or vocational training environment, this galvanometer proves itself as a dependable tool for accurate current measurement.
The construction of the instrument ensures minimal friction, offering smooth pointer movement and reducing the risk of mechanical lag, which could otherwise compromise measurement accuracy. Internally, the coil and magnets are made using high-grade materials that provide longevity and repeatable precision. Furthermore, the use of durable plastic for the housing adds to the galvanometer’s safety profile, especially when used by younger students or in high-traffic educational settings.
Designed for intuitive use, the galvanometer is equipped with standard terminal connections that allow quick and secure integration into any experimental circuit. This feature supports seamless switching between various setups without the need for specialized connectors, making it suitable for quick demonstrations as well as long-duration laboratory investigations. The overall form factor is compact, allowing it to fit conveniently on lab benches without occupying excessive space.
In conclusion, the DC Moving Coil Galvanometer rated for 5A is a reliable and essential tool for accurately measuring electric current in laboratory environments. Its sturdy plastic body, analog display, and robust internal components ensure long-lasting performance. Ideal for academic, research, and technical training purposes, this galvanometer delivers precise and efficient current measurement, making it a valuable addition to any electrical or physics laboratory setup.
